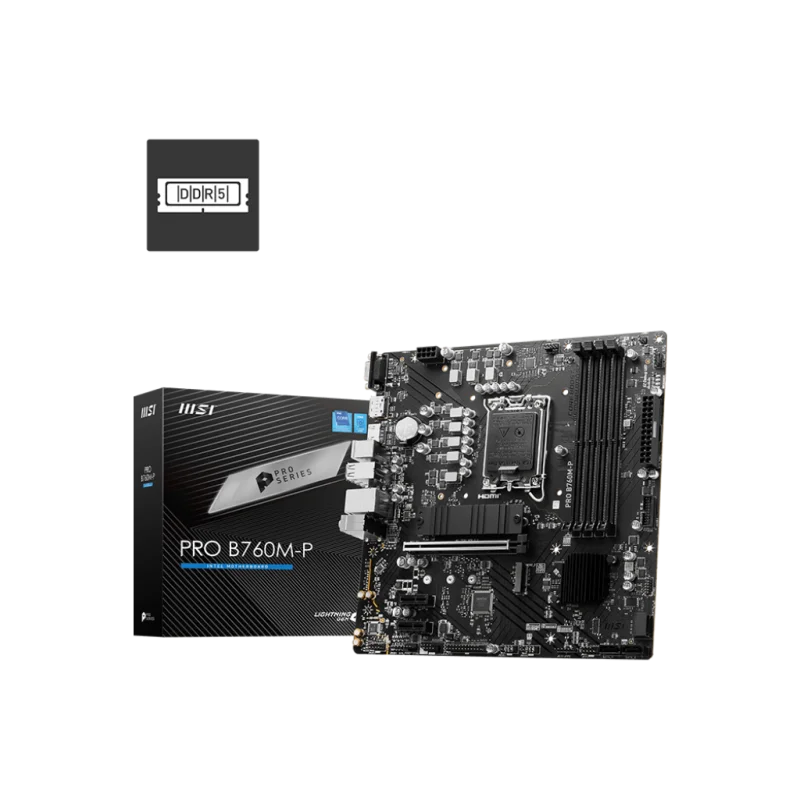

MSI PRO B760M-P DDR5 ATX Motherboard

MSI PRO B760M-P DDR5 ATX Motherboard
Roll over image to zoom in
Click to open expanded view

৳ 15,500.00

In stock

Key Features:
  • Supports 12th/ 13th Gen Intel Processors
  • Supports DDR5 Memory, up to 6800+(OC) MHz
  • 12+1+1 Duet Rail Power System
  • PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution
Wishlist
Compare
Categories: , Brand:

MSI PRO B760M-P DDR5 ATX Motherboard

MSI PRO B760M-P Intel Motherboard is a powerful and versatile motherboard designed to meet the needs of gamers and PC enthusiasts. This motherboard boasts a range of flexible tools that allow users to customize their systems to meet their specific needs. With impressive performance and high-quality components, the MSI PRO B760M-P Intel Motherboard is a reliable choice for anyone looking for a high-performance motherboard.

One of the most notable features of the MSI PRO B760M-P Intel Motherboard is its ability to deliver incredible performance. With support for Intel’s latest processors, this motherboard is capable of handling even the most demanding applications with ease. Whether you’re a hardcore gamer or a video editor, this motherboard will give you the power you need to get the job done.

In addition to its impressive performance, the MSI PRO B760M-P Intel Motherboard is also built to last. Its high-quality components ensure that it maintains a high level of efficiency, even under heavy workloads. This motherboard also comes with extra solder points, providing users with even greater flexibility when it comes to customization.

Another key feature of the MSI PRO B760M-P Intel Motherboard is its support for the latest technologies. This motherboard features support for PCIe 3.0, allowing users to take advantage of the latest high-speed storage devices and graphics cards. It also supports Intel Optane Memory, which can significantly boost the performance of your system.

Overall, the MSI PRO B760M-P Intel Motherboard is a top-of-the-line motherboard that offers incredible performance and high-quality components. Whether you’re a gamer or a PC enthusiast, this motherboard is a great choice for anyone looking to build a powerful and reliable system. So if you’re looking for a motherboard that can deliver impressive performance and flexibility, the MSI PRO B760M-P Intel Motherboard is definitely worth considering.

Specification
Motherboard Specification
Chipset Intel B760
Socket LGA 1700
Form Factor ATX
243.84mmx304.8mm
Audio Realtek® ALC897 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Memory Specification
Memory Type DDR5
Memory Capacity 192GB
Network & Wireless
LAN Realtek® 2.5Gbps LAN
Supports
Supported CPU Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Supported Memory Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 5333+ MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
Connectors
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Display Port Support DP 1.4, maximum resolution of 8K 60Hz
1x DisplayPort
HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
1x HDMI
Ports & Slots
PCI-E 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
Slots 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
Warranty Information
Warranty 3 Year
