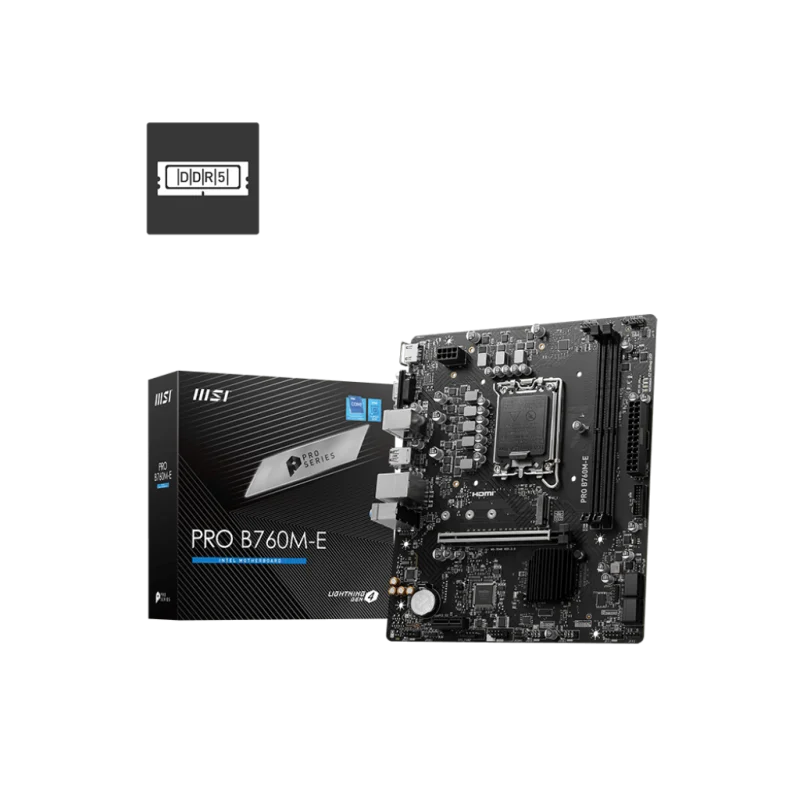

MSI PRO B760M-E DDR5 ATX Motherboard

MSI PRO B760M-E DDR5 ATX Motherboard

MSI PRO B760M-E DDR5 ATX Motherboard is a high-quality motherboard designed for gaming and content creation. It features the latest Intel B760 chipset and supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors. The motherboard has a MATX form factor and measures 243.84mm x 304.8mm. It has an audio solution provided by Realtek® ALC897 Codec, which offers 7.1-Channel USB High Performance Audio support along with S/PDIF output. The motherboard supports up to 96GB of DDR5 memory, with a maximum memory capacity of 6400+ (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC). The motherboard has a variety of connectors, including four USB 2.0 ports, four USB 3.2 Gen1 Type A ports, two USB 3.2 Gen2 Type A ports, and four USB 3.2 Gen2 Type C ports. It also has an HDMI port supporting HDMI 2.1 with HDR, maximum resolution of 4K 30Hz, and a display port supporting DP 1.4, maximum resolution of 8K 60Hz. The motherboard has several slots, including one PCI-E x16 slot, one PCI-E x1 slot, and a PCI_E1 Gen PCIe 4.0 slot supporting up to x16 (from CPU), and a PCI_E2 Gen PCIe 3.0 slot supporting up to x1 (from chipset). It also has internal I/O ports, including one power connector, one CPU fan connector, two system fan connectors, two front panel connectors, one chassis intrusion connector, one front audio connector, one CPU Fan connector, and one TPM pin header. The motherboard has several other features, including 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 2x USB 3.2 Gen2 Type A ports, and 1x USB 3.2 Gen2x2 Type C port. Additionally, it has multiple fan headers, including one CPU Fan header, two system fan headers, and two front panel headers.

MSI PRO B760M-E DDR5 ATX Motherboard Features

• Supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors
• Supports up to 96GB of DDR5 memory with a maximum frequency of 6400+ (OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC)
• Realtek 2.5Gbps LAN with support for 2T2R and 1T2R MIMO technology
• Supports dual-controller dual-channel mode and Non-ECC, un-buffered memory
• USB 3.2 Gen1 and Gen2 ports on both the front and back sides
• HDMI 2.1 with HDR and maximum resolution of 4K 30Hz, as well as DisplayPort 1.4 with maximum resolution of 8K 60Hz
• One PCI-E x16 slot and one PCI-E x1 slot
• Internal I/O ports include power connectors, CPU fan, system fan, front panel audio, chassis intrusion, and TPM pin header
• RGB LED connector and front audio port
• Supports Intel XMP 3.0 OC and dual-channel mode
• Compatible with Intel B760 chipset
